Replaceable Fuses and Steel Shear Tabs Could Make Precast Buildings Earthquake-Resilient

When a major earthquake strikes a modern city, the damage to its buildings is often measured not just in collapsed structures but in the months and years of closures, repairs and displaced businesses that follow. A growing movement in earthquake engineering argues that buildings should not merely survive a quake — they should be ready to reopen almost immediately afterward. New research published in the Bulletin of Earthquake Engineering takes a significant step toward that goal for precast concrete buildings, one of the fastest-growing construction methods in the world, by solving a stubborn design problem hidden inside a connection barely larger than a human arm.

The study, led by Zhaoxun Yuan of Guangdong Polytechnic of Water Resources and Electric Engineering together with Guiqiang Hao, Junxian Zhao of South China University of Technology, Wei Han, and Jiulin Bai of Chongqing University, focuses on a seismic-resilient connection for precast concrete moment frames that the same research group had previously proposed and tested. The concept is elegant: instead of allowing an earthquake to crack and crush the concrete beam itself, the design deliberately concentrates all the damage into sacrificial steel components that can be unbolted and swapped out after a quake, much like replacing a blown fuse in an electrical panel.

The connection is installed at the splice location along the beam — the point that corresponds to the inflection point of the beam under gravity loading, where bending demands are naturally lowest. At the top of the beam, vertical steel plates known as shear tabs are embedded across the splice section and extend into the adjacent precast beam segments. These tabs perform two simultaneous jobs: they act as the rotational center of the connection, allowing the beam ends to rock and rotate under seismic motion, and they transfer shear forces between the beam segments. Shear studs welded onto the embedded portions of the tabs help anchor the forces into the surrounding concrete. At the bottom of the beam, two buckling-restrained braces, or BRBs, serve as the replaceable fuse. A BRB is a steel yielding core wrapped in a restraining mechanism that prevents the brace from buckling in compression, allowing it to yield repeatedly in both tension and compression and dissipate seismic energy in a stable, predictable way — a technology with a well-documented track record in steel braced frames.

Previous experimental work by the team had validated the broader damage-control philosophy of the system: the fuses yield, the concrete stays essentially intact, and the building snaps back into service with only a quick component replacement required. But a critical question remained unanswered. The shear tabs are not simple elements — they simultaneously carry axial forces, shear forces and bending moments between the beam segments while themselves rotating as the connection rocks. If a designer sizes the tabs incorrectly, they can either fail to transmit the forces reliably or fracture prematurely under the relentless back-and-forth of cyclic earthquake loading. Before this new study, no systematic design criteria existed for these components, leaving the innovative connection without an engineering pathway from proof-of-concept into actual building codes and practice.

To close that gap, the researchers constructed detailed finite element models of the connection, carefully calibrated against the earlier test data so that the simulations reproduced the observed behavior with confidence. With a validated digital replica in hand, they used it as a virtual laboratory to dissect the force transfer mechanism inside the shear tabs — mapping how axial, shear and flexural demands flow through the steel plates and into the welded shear studs and surrounding concrete. Understanding this internal load path was the essential prerequisite for writing any rational design rule, because a design criterion is only trustworthy if it reflects what the component is actually experiencing, rather than what an idealized diagram suggests.

Informed by that mechanism, the team then formulated two complementary families of design criteria. The first are strength criteria, which ensure that the shear tabs and their stud groups are strong enough to transmit the full complement of forces demanded of them — including the capacity of the replaceable BRB fuses, which are intentionally sized to yield before anything else in the connection. The second are damage-control criteria, which protect the tabs themselves from premature fracture under cyclic loading, guaranteeing that the replaceable fuses remain the sacrificial elements while the permanent load-transfer hardware stays elastic and intact through the design earthquake. In other words, the design ensures the right components break — and only the ones that were meant to.

The researchers then put these proposed design methods through their paces. They generated families of finite element models in which the cross-sectional dimensions of the shear tabs, the height-to-thickness ratios of the plates, and the arrangements and diameters of the welded shear studs were varied systematically. The validation confirmed that the new design equations reliably bounded the behavior across this range of geometries, giving engineers a defensible basis for proportioning real connections rather than relying on trial and error or conservative guesswork. The numerical campaign, illustrated in the paper by more than twenty figures of stress distributions, failure modes and performance comparisons, effectively converts the earlier experimental proof-of-concept into a designable, code-ready structural system.

The broader context makes the work timely. Precast concrete construction — in which beams, columns and walls are factory-cast and assembled on site — offers speed, quality control and reduced labor costs, which is why it dominates industrial construction in many seismically active regions. Yet earthquake after earthquake has exposed the vulnerability of poorly detailed precast connections: the 2012 Emilia earthquake in Italy, the 1999 Turkey earthquake and the 1994 Northridge earthquake all produced characteristic connection failures in precast industrial and commercial buildings, often collapsing roofs even when the rest of the structure survived. Modern seismic design therefore treats the connection, not the member, as the critical link, and decades of research have produced a wide repertoire of alternatives — wet cast-in-place joints, prestressed self-centering systems, slit dampers, friction devices and replaceable energy-dissipation bars — each with its own trade-offs in cost, complexity and recoverability.

What distinguishes the shear-tab-plus-BRB-fuse concept is the way it decouples the two functions that conventional connections force into a single overloaded zone. The steel tabs handle the geometric and force-transfer duties while remaining elastic; the braces handle the energy dissipation and accept the damage. Because the fuses sit at the beam inflection point rather than at the column face, the connection also avoids stressing the critical beam-column joint region, which is notoriously difficult to repair. The result, validated in the team’s earlier experiments, is a frame that experiences minimal residual drift after a design-level earthquake — meaning doors still close, partitions stay uncracked, and the building can be occupied while a small crew bolts in new fuses over a weekend.

The new design methodology for the shear tabs removes what was arguably the last major obstacle to practical implementation of this system for precast concrete frames. With strength and damage-control criteria now validated numerically across a wide parameter space, structural engineers have a complete, documented design procedure for the connection’s every component. The research was funded by the National Natural Science Foundation of China, the Guangdong Basic and Applied Basic Research Foundation, and the Guangdong Provincial Key Laboratory of Modern Civil Engineering Technology. As cities in seismic regions continue to expand with precast construction, designs of this kind point toward a future in which the question after a major earthquake is no longer whether a building can be saved, but simply how quickly the spare parts can be installed.

Subject of Research: Design of shear tabs in seismic-resilient precast concrete moment connections with replaceable buckling-restrained brace fuses

Article Title: Seismic resilient precast concrete moment connections with top shear tabs and bottom replaceable fuses: numerical study on shear tabs detailing

Article References: Yuan, Z., Hao, G., Zhao, J., Han, W., & Bai, J. (2026). Seismic resilient precast concrete moment connections with top shear tabs and bottom replaceable fuses: numerical study on shear tabs detailing. Bulletin of Earthquake Engineering. https://doi.org/10.1007/s10518-026-02666-8

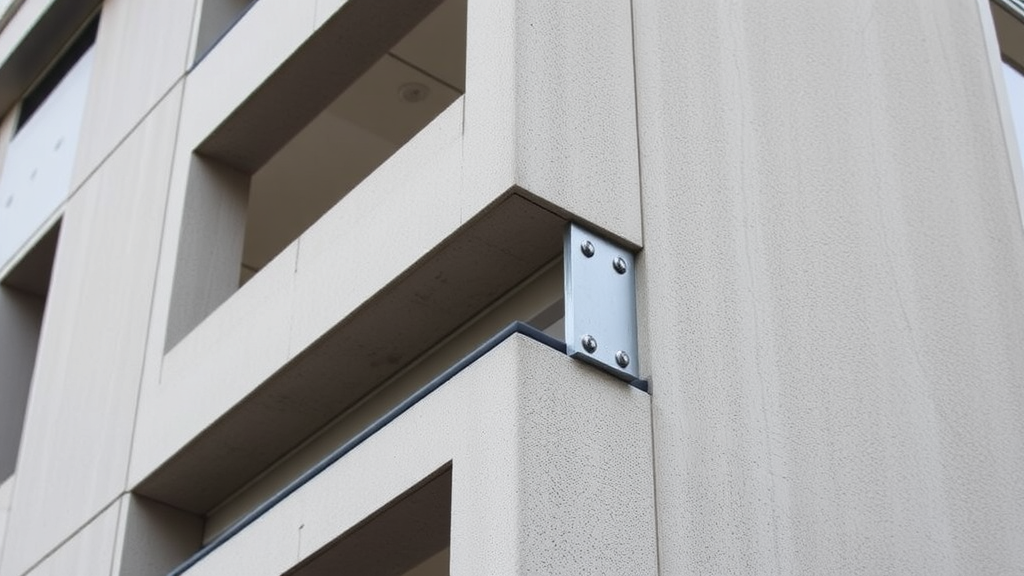

Image Credits: AI Generated

DOI: 10.1007/s10518-026-02666-8

Keywords: seismic resilience, precast concrete, moment frame, shear tabs, replaceable fuse, buckling-restrained brace, finite element analysis, damage-control design, beam-column connection, earthquake engineering, force transfer mechanism, cyclic loading
