The Grid Gets New Eyes: How AI and Waveform Sensors Are Rewiring Power Monitoring

Deep beneath the hum of every modern power grid lies a quiet revolution in measurement. For more than three decades, phasor measurement units, or PMUs, have acted as the grid’s synchronized nervous system, streaming time-stamped snapshots of voltage and current from substations scattered across continents. A new review published in Frontiers in Electronics argues that this long-established technology is now undergoing its most profound transformation yet, one driven by the collision of two forces: the rise of inverter-based renewable energy and the arrival of artificial intelligence capable of digesting the resulting torrent of data.

The review, led by Lei Chen of Shandong Development New Energy and Jie Lou of Shandong University, takes stock of where PMU technology stands and where it is heading. Its central claim is striking: the familiar phasor, the mathematical abstraction that has defined synchrophasor measurement since the late 1980s, is no longer sufficient for the grid of the future. Instead, the authors chart a transition toward point-on-wave, or PoW, sensing, in which devices capture raw voltage and current waveforms at sampling rates exceeding 10 kilohertz, and in some cases approaching 100 kilohertz, rather than reporting averaged phasors at 30 to 120 frames per second.

The reason for this shift lies in the changing physics of the grid itself. Traditional SCADA systems sample every 2 to 10 seconds, while conventional PMUs improved on that by orders of magnitude, enabling wide-area monitoring systems across the United States, Europe, and Asia. But the growing penetration of inverter-based resources, such as solar farms, wind turbines, and battery storage, along with ultra-fast loads like data centers and high-speed electric vehicle chargers, has introduced fast, nonlinear, and non-sinusoidal dynamics that phasor abstractions simply cannot represent. Phenomena such as sub-synchronous interactions, harmonic resonances, and power quality disturbances often unfold at time scales or frequency ranges beyond the reach of traditional PMU outputs, which rely on multi-cycle processing windows that can average away exactly the oscillations operators most need to see.

On the hardware side, the review documents a three-pronged evolution. First, sensing fidelity is improving through high-speed analog-to-digital converters capable of sampling rates exceeding 100 kilohertz, with a shift from 16-bit successive-approximation architectures to 24-bit sigma-delta designs that can capture kilo-ampere fault currents while still resolving milli-ampere-level oscillations without saturation. Second, on-board processing is moving from simple digital signal processors to heterogeneous FPGA and system-on-chip platforms that can run real-time phasor estimation, harmonic decomposition, decaying DC offset correction, and even edge AI inference within sub-cycle time constraints. Third, communication strategies are evolving from the C37.118 phasor protocol toward custom waveform streaming and Internet of Things standards such as MQTT and DDS, though the lack of a unified vendor-neutral standard for high-rate waveform data remains a stubborn bottleneck.

Edge computing is emerging as a particularly consequential development. Modern edge-capable PMUs can execute advanced analytics and decision-making algorithms locally, identifying fault occurrences, transient disturbances, or cyber anomalies at the measurement device itself, which slashes transmission latency and bandwidth requirements while enabling immediate local responses. Modular architectures that support dual-mode operation, seamlessly switching between phasor and point-on-wave measurements depending on operational context, are also gaining traction, allowing a single device to serve both conventional steady-state monitoring and transient-focused applications simultaneously.

The commercial landscape, however, reveals a significant gap between laboratory promise and deployed reality. Standard commercial PMUs, built around discrete Fourier transform-based phasor extraction, offer reporting rates of 30 to 120 frames per second and observability bandwidth limited by the Nyquist rate, effectively masking dynamics above roughly 5 to 10 hertz. Emerging PoW-capable devices stream continuous raw waveforms at around 10,000 samples per second, providing full-spectrum visibility into high-frequency oscillations, harmonics, and transients. The trade-off is stark: while a standard PMU stream consumes roughly 50 to 600 kilobits per second, a PoW stream demands around 10 megabits per second, shifting the cost burden from capital expenditure toward operational expenses driven by data storage, transmission bandwidth, and big data management.

Algorithmic innovation is racing to keep pace. Enhanced phase-locked loops now maintain synchronization even during severe frequency excursions and rapid voltage phase shifts, while adaptive window filtering techniques dynamically adjust their processing windows based on real-time signal characteristics, improving robustness against harmonics, interharmonics, and the decaying DC offsets that follow faults or network reconfigurations. Synchro-waveform analysis techniques can now extract fundamental phasors, harmonics, interharmonics, and sub-synchronous oscillations simultaneously, and the recent revision of IEEE Standard 60255-118-1 tightens requirements for frequency ramp tracking, transient response accuracy, and noise immunity, positioning PMUs as universal waveform sensors rather than mere phasor reporters.

The review illustrates the stakes with a field case recorded during a grid oscillation event in Seville, Spain, in December 2025. When a representative PoW-capable device processed the data with a long-window, 50-cycle moving average, the oscillatory component was significantly attenuated and the grid appeared to be operating in a relatively steady condition. But when the same data was processed with a 1-cycle waveform-based window, a distinct 5.88 hertz oscillatory component emerged clearly, superimposed on the fundamental trend. The lesson is uncomfortable but important: conventional multi-cycle processing can render fast oscillatory behaviors invisible, and in inverter-dominated grids those behaviors are precisely the ones that threaten stability.

Artificial intelligence is positioned not as an auxiliary tool but as an essential enabling layer for this new measurement paradigm. Deep learning architectures, particularly convolutional neural networks and autoencoders, have proven effective at extracting informative features from high-dimensional waveform data streams, while attention-based transformer models are being explored for capturing long-term temporal dependencies in time-series forecasting. Applications already demonstrated include real-time inertia estimation in low-inertia, renewable-dominated systems, online oscillation detection and mode identification, and generative AI frameworks that compress continuous PoW waveforms while simultaneously supporting robust sequential fault detection, addressing protection challenges such as sympathetic tripping and protection blinding in inverter-dominated distribution networks. Physics-informed neural networks, which embed swing equations and network constraints directly into the learning process, offer a path toward more reliable and interpretable AI-based analytics under limited or noisy measurement conditions.

The review closes with a sober assessment of what stands between laboratory prototypes and operational deployment. Interoperable waveform data standards, such as the IEEE P2650 effort for synchro-waveform data exchange, remain works in progress. Deployment-oriented performance metrics that explicitly account for latency, reliability, and cybersecurity are still needed, and effective knowledge transfer from academic AI models to practical wide-area monitoring systems remains an open challenge. Yet the direction is unmistakable: as data centers, electric vehicle charging hubs, and distributed energy resources continue to reshape the grid’s dynamic behavior, PMUs are evolving beyond measurement devices into integral components of data-driven power system operation, and the fusion of waveform-level sensing with artificial intelligence promises to move the grid from reactive monitoring toward proactive, intelligent control.

Subject of Research: Advancements in phasor measurement units and point-on-wave sensing for AI-enabled power grid monitoring

Article Title: PMU advancements and applications in the AI Era

Article References: PMU advancements and applications in the AI Era. (n.d.). https://doi.org/10.3389/felec.2026.1700069

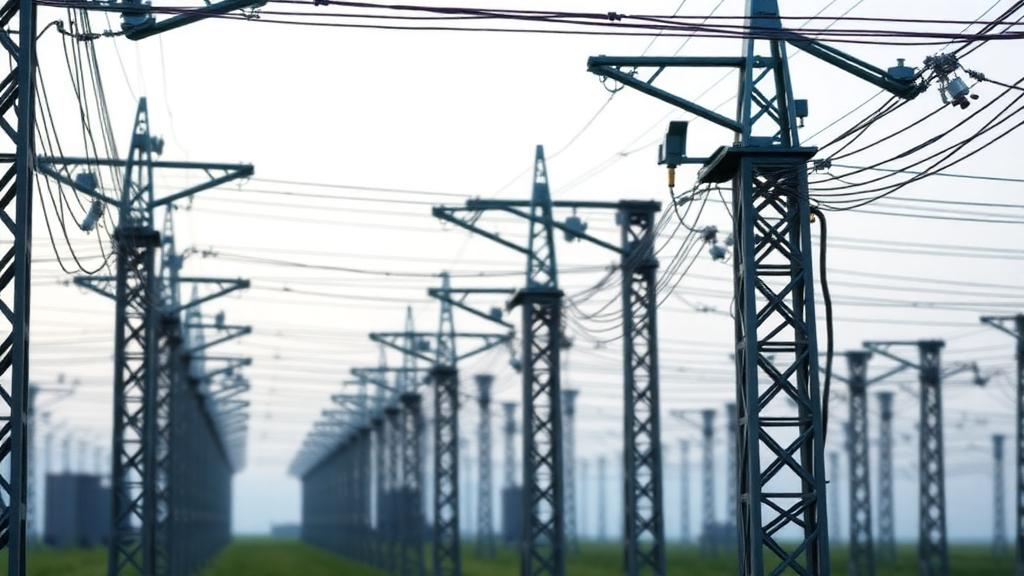

Image Credits: AI Generated

DOI: 10.3389/felec.2026.1700069

Keywords: phasor measurement units, point-on-wave measurement, synchrophasors, artificial intelligence, power grid monitoring, inverter-based resources, wide-area monitoring systems, edge computing, sub-synchronous oscillations, smart grid, deep learning, power quality
