In recent years, the space industry has witnessed an unprecedented surge in activity, with the pace of satellite launches accelerating to staggering levels. By the end of 2023, over 9,850 operational spacecraft circled Earth, making space a significantly crowded frontier. This exponential growth, coupled with the space economy’s annual revenue reaching $400 billion, underscores the strategic importance of space technology and its deep integration into everyday life and global infrastructure. Amidst this rapid expansion, protecting high-value space assets such as satellites from detection has emerged as a pressing technical challenge. Detection risks not only threaten the security and operational integrity of spacecraft but could also compromise national and commercial interests. Consequently, developing advanced stealth technologies tailored to the space environment is of paramount importance.

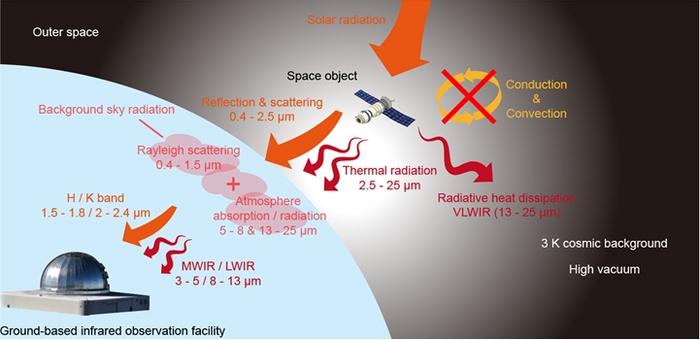

Traditional detection threats emanate primarily through visible, infrared, and microwave spectral bands. However, these modalities have inherent limitations within the space-to-ground detection paradigm. Visible wavelength detection, for example, suffers from reduced effectiveness during daylight hours due to the overwhelming brightness of the sky background. Meanwhile, microwave detection methods, constrained by transmission power and atmospheric interference, are predominantly effective only for low-Earth orbit objects. Infrared detection, however, benefits significantly from the weaker infrared background radiation present in the night sky, thereby offering superior signal-to-noise ratios. This characteristic makes infrared surveillance a critical threat vector for the stealth of space-borne instruments and vehicles.
Despite advancements in infrared camouflage technology, their application to the space environment remains imperfect. Conventional infrared camouflage largely ignores the solar radiation bands, which are prominent during sunlit conditions in orbit. Moreover, existing radiative heat dissipation bands fail to provide sufficient thermal management for maintaining spacecraft within a critical temperature range—typically between -20 to 70 degrees Celsius. Without effective heat dissipation, spacecraft components are vulnerable to overheating, compromising performance and lifespan. Space presents a uniquely harsh thermal environment where conduction and convection heat transfer mechanisms are virtually non-existent due to the vacuum. This leaves thermal radiation as the only viable means of managing spacecraft temperature, putting a premium on sophisticated radiative designs.
Recognizing these unmet challenges, a team led by Professor Qiang Li at Zhejiang University’s State Key Laboratory of Extreme Photonics and Instrumentation has proposed a novel and elegant solution to infrared camouflage and heat dissipation for space objects. Their groundbreaking research, published in the journal Light: Science & Applications, introduces a multilayer thin-film device engineered to simultaneously address camouflage and thermal management needs across multiple critical spectral bands. By meticulously analyzing the energy distributions in various infrared bands, the team identified an optimal combination of spectral windows for stealth and heat dissipation. Their strategy targets camouflage within the near-infrared H band (1.5–1.8 μm), K band (2.0–2.4 μm), mid-wave infrared (3–5 μm), and long-wave infrared (8–13 μm) bands. To ensure effective heat rejection, they leverage the very-long-wave infrared (13–25 μm) band as a radiative heat dissipation channel, a novel concept that balances stealth with thermal regulation.
Central to this innovation is the engineering of a multilayer thin-film stack composed of alternating layers of Zinc Sulfide (ZnS), Germanium-Antimony-Tellurium (GST), Hafnium Oxide (HfO₂), Germanium (Ge), and Nickel (Ni). This intricate layering yields a device merely 4.25 micrometers thick, yet capable of precise spectral tuning. The device exhibits remarkably high absorptivity in the H and K bands (0.839 and 0.633 respectively), effectively minimizing reflected solar radiation and preventing unwanted detection through reflected light. Conversely, it maintains low emissivity values within the mid-wave and long-wave infrared bands (0.132 and 0.142), suppressing the spacecraft’s own thermal emission signature. Crucially, the device also achieves high emissivity (0.798) in the very-long-wave infrared range, providing efficient radiative heat dissipation that maintains spacecraft systems within safe operating temperatures.
To validate the camouflage effectiveness under realistic conditions, the research team affixed the thin-film device onto a satellite model. In outdoor testing regimes simulating ground-based infrared observations, the differences were striking. Sections covered by the camouflage device showed dramatically reduced infrared signatures compared to their uncovered counterparts. In mid-wave and long-wave infrared images, the radiative temperatures of the covered areas were substantially lower—closely matching that of the ambient sky background—compared to the hotter, exposed sections. Moreover, in near-infrared H and K band imaging, signal intensities dropped by up to 36.9% and 24.2%, respectively, confirming that the device effectively conceals both emitted and reflected signals across important detection bands.
Thermal management performance was rigorously tested through vacuum chamber experiments designed to replicate space conditions. The chamber was maintained at a near-zero pressure of 0.15 Pascal, thereby eliminating significant convective heat transfer and isolating radiative cooling effects. Liquid nitrogen was used to simulate the extremely cold 3 Kelvin background of outer space. The device was heated by a controlled electric heating plate to simulate operational heat generated or captured during spacecraft activity. Impressively, under a heating power density of 1,200 watts per square meter, the device lowered the thermal equilibrium temperature by nearly 40 degrees Celsius relative to a reference metallic film. Such efficient radiative heat dissipation holds vital implications for thermal stability, ensuring spacecraft components remain within stringent operational temperature limits even under intense heat loads.
This work marks a significant advance in the precision engineering of optically and thermally active surfaces for space applications. Through rational thin-film design, the researchers achieved simultaneous spectral control over five distinct infrared bands, successfully reconciling competing requirements for stealth and thermal management. The device’s total thickness of just over four microns is remarkable given its multifunctional capabilities, highlighting the potential for light-weight, robust coatings suitable for the extreme conditions of space. The layered device also demonstrated excellent thermal stability, a necessity given the severe temperature fluctuations encountered beyond Earth’s atmosphere.
Beyond its immediate technical achievements, this research offers a promising path forward for expanding humanity’s reach in space exploration and commercial exploitation. As space becomes ever more congested and contested, stealth technology will be crucial for safeguarding satellites and sensitive instruments from adversarial detection and interference. Moreover, efficient heat dissipation strategies will enable longer mission durations and improved reliability. Professor Qiang Li’s team has exemplified how cutting-edge materials science and photonics can directly address these profound challenges, pushing the boundaries of what is possible in aerospace engineering.
Given these advances, the research may catalyze a new wave of innovation in spacecraft design, merging optical stealth with integral thermal control. By leveraging thin-film multilayers tailored to specific spectral bands and heat dissipation windows, future satellites could dramatically reduce their infrared signatures while maintaining optimal operating temperatures passively. This could lead to broader applications beyond satellites, including deep-space probes, space station modules, and even planetary surface hardware, where IR camouflage and thermal balance are indispensable.
In summary, the development of this multilayer thin-film infrared camouflage device with integrated radiative heat dissipation represents a transformational platform technology for space-based systems. It meticulously addresses the complex interplay between stealth requirements and thermal management in the vacuum of space, achieving performance levels previously unattainable with conventional materials. As global space activities continue to expand rapidly, innovations like this will be essential for enhancing the survivability, stealth, and operational efficiency of space missions, paving the way for a new era of secure and sustainable space utilization.
Subject of Research: Space-to-ground infrared camouflage technology and radiative heat dissipation for spacecraft
Article Title: Space-to-ground infrared camouflage with radiative heat dissipation
Web References: 10.1038/s41377-025-01824-y
Image Credits: Qin, B., Zhu, H., Zhu, R. et al.
