The diurnal variation of cloud fraction (CDV) represents one of the most critical yet understudied aspects of Earth’s atmospheric system, exerting profound influence over the planet’s radiative budget and climate dynamics. Unlike the commonly evaluated daily mean cloud fraction (CFR), which provides a snapshot averaged over 24 hours, CDV captures the rhythmic fluctuations of cloud cover throughout the day. This temporal variability plays a pivotal role in modulating surface temperatures, atmospheric humidity, and the complex chain of processes governing precipitation patterns and the genesis and evolution of tropical cyclones. However, despite its significance, substantial discrepancies persist between observed CDV patterns and those simulated by state-of-the-art climate models, casting uncertainty over predictions of future climate states.
Addressing this pressing gap, a recent study spearheaded by Guoxing Chen, a research scientist at Fudan University, alongside his Master’s student Hongtao Yang and their collaborators, delves deeply into the bias characteristics of CDV in one of the leading global climate models, FGOALS-f3-L. Their pioneering work, published in Atmospheric and Oceanic Science Letters, offers an unprecedented quantitative evaluation of how well this model replicates the intricate diurnal fluctuations of cloud fraction on a global scale, drawing upon multi-year satellite observations from ISCCP and CERES. By moving beyond simplistic daily averages, these researchers critically assess the degree to which cloud fraction simulation biases differ across diurnal phases, cloud altitude layers, and geographic domains.

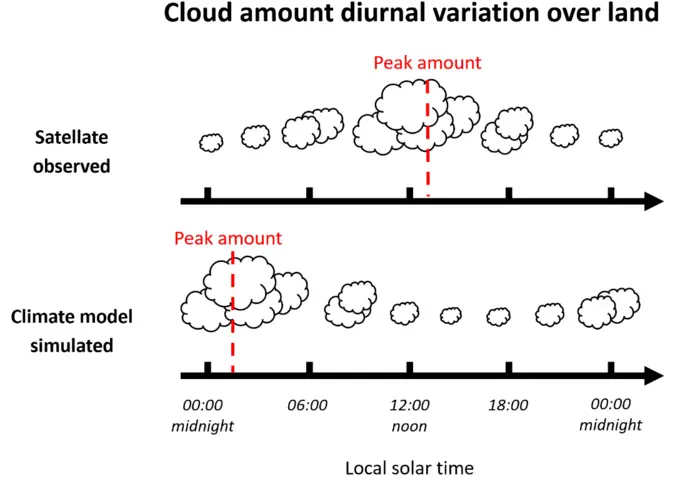

The findings reveal a pronounced underestimation of low-level cloud fraction during daylight hours within the FGOALS-f3-L model. This deficiency is particularly consequential because low-level clouds significantly influence the Earth’s shortwave radiation balance by reflecting incoming solar radiation, thus exerting a cooling effect on the surface. The model’s failure to accurately capture the peak presence of these clouds in the daytime leads to a systemic bias that distorts diurnal cloud coverage patterns and associated radiative feedbacks. Such an underrepresentation of daytime low-level clouds emerges as the predominant factor fueling total CDV biases in the model, indicating a critical area where simulation fidelity must improve.
Intriguingly, the study also elucidates contrasting bias trends between cloud layers at different altitudes. Whereas low-level cloud fractions are underestimated, mid- and high-level clouds exhibit compensatory biases in the opposite direction. These opposing biases partially offset one another when combined in overall cloud fraction calculations, inadvertently masking some of the model’s deficiencies in reproducing diurnal cycles. However, this complex interplay underscores the necessity of evaluating cloud dynamics with height-resolved precision to unravel the nuanced contributions of each cloud type to the global radiation budget.
Beyond mere cloud fraction errors, the research highlights the substantial impact that CDV biases exert on the simulation of shortwave cloud radiative effects (SWCRE) within climate models. Historically, SWCRE assessments emphasized biases in daily mean cloud fraction, but Chen and colleagues demonstrate that diurnal variability errors can generate radiative discrepancies of comparable magnitude. Their analysis reveals that inaccuracies in the timing and amplitude of cloud cover fluctuations throughout the day can alter the surface and atmospheric energy balance, thereby influencing temperature regulation and hydrological cycles.
This relationship between CDV biases and SWCRE inaccuracies carries profound implications for climate model development. It indicates that improving cloud parameterizations requires not only attention to the average amount of cloud cover but also a fine-grained understanding of temporal cloud dynamics. Tuning models to accurately reproduce the diurnal rhythm of cloud fraction will enhance their capacity to simulate Earth’s radiation budget and, by extension, future climate scenarios more reliably. Chen emphasizes this point, asserting that the diurnal variation of cloud fraction “deserves more attention” in both model evaluation and development, advocating targeted efforts to bridge these gaps.
Moving forward, the research team plans to enrich their analysis by incorporating additional radiative variables such as cloud optical thickness and cloud albedo into their evaluation framework. These parameters play crucial roles in modulating the strength and character of cloud radiative effects, controlling the scattering and absorption of solar radiation by cloud droplets and ice crystals. By isolating the contributions of cloud physical properties alongside fraction variations, the researchers aim to isolate distinct drivers of radiative biases in climate simulations with greater precision. This approach will unravel how CDV interacts with microphysical cloud characteristics to shape complex feedback mechanisms.
The integration of multiple observational datasets, including ISCCP and CERES, underpins the robustness of this study’s findings. ISCCP offers multi-decadal records of cloud cover derived from geostationary and polar-orbiting satellites, capturing diurnal cloud cycles at high spatial resolution. CERES, on the other hand, provides detailed measurements of Earth’s radiative fluxes, enabling direct linkages between cloud dynamics and surface energy exchanges. Leveraging these complementary sources empowers the researchers to validate model outputs comprehensively and identify specific error patterns with high confidence.
Notably, the study’s methodological advancements reflect a shift toward more nuanced model evaluation frameworks within Earth system sciences. Traditional climate model assessments have predominantly relied on bulk metrics such as annual or seasonal mean clouds, often overlooking the time-dependent fluctuations that fundamentally govern climate feedbacks. By focusing on diurnal cycles, Chen’s team demonstrates how a temporal lens reveals previously hidden model biases, prompting a paradigm shift that could catalyze enhanced understanding and improved climate model architectures worldwide.
The implications of these findings extend beyond academic curiosity, bearing consequences for climate policy, disaster preparedness, and environmental management. Accurate simulation of cloud diurnal variation is vital for predicting regional climate extremes, including heat waves and intense rainfall events, both intimately tied to cloud-radiation interactions at sub-daily scales. Tropical cyclone forecasting, too, depends on reliable depictions of cloud cover fluctuations, as clouds modulate storm development and intensity. Therefore, refining climate models by correcting CDV biases will enhance predictive capabilities that underpin risk assessments and mitigation strategies.
Moreover, the study highlights the complex interdependencies between cloud fraction biases at different atmospheric levels and their aggregate radiative effects. This intricate balancing act between cloud layers implies that simplistic model adjustments could have unintended consequences, emphasizing the imperative for sophisticated parameter tuning informed by observational constraints. As the climate modeling community integrates these insights, the potential for breakthroughs in simulating cloud-climate feedbacks and reducing uncertainties in climate projections increases substantially.
In summation, the groundbreaking investigation by Chen, Yang, and colleagues underscores the vital importance of addressing cloud fraction diurnal variation in climate modeling. Their nuanced analysis reveals that daytime low-level cloud underestimation dominates CDV biases in the FGOALS-f3-L model, significantly distorting simulated shortwave cloud radiative effects. By advancing methodologies that dissect cloud fraction biases across temporal and vertical dimensions, their research paves the way for more accurate Earth system simulations. This work represents an essential step toward narrowing the gulf between model projections and real-world observations in the quest to comprehend and predict climate change with enhanced fidelity.
Subject of Research: Cloud Fraction Diurnal Variation and Its Biases in Climate Models
Article Title: Bias characteristics of cloud diurnal variation in the FGOALS-f3-L model
Web References:
Image Credits: Hongtao Yang
Keywords: Earth systems science, cloud fraction, diurnal variation, climate models, radiative budget, shortwave cloud radiative effects, FGOALS-f3-L, ISCCP, CERES
