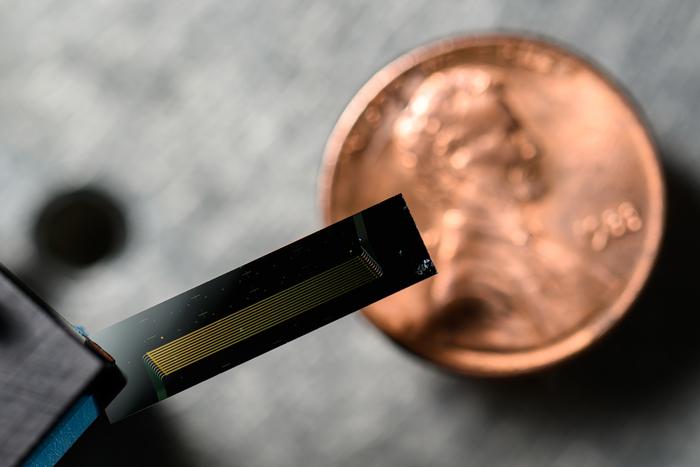

In a groundbreaking leap for photonics and precision measurement, researchers from the University of Rochester and the University of California, Santa Barbara have unveiled a miniature laser device with capabilities that could revolutionize several high-technology fields. Smaller than a penny yet intensely powerful, this chip-scale laser utilizes a synthetic material called lithium niobate, a departure from the conventional silicon photonics, to unlock ultrafast and ultra-precise optical metrology previously achievable only with bulky, expensive setups. The innovation hinges on the Pockels effect—a phenomenon where an applied electric field rapidly changes the refractive index of the material—allowing the laser to sweep across a broad spectrum of light at astonishing speeds nearing 10 quintillion tunings per second.
Optical metrology, the science of making precision measurements with light, plays a pivotal role in the study and understanding of physical properties of materials and objects. Historically, this field has been hindered by its reliance on large-scale, delicate, and prohibitively costly instrumentation to finely control laser wavelengths and frequencies. The new integrated laser on chip technology sidesteps these limitations by compressing the requisite optical controls into a compact device that delivers frequency modulation at unprecedented rates and spans an impressively broad tuning range. This advancement not only holds promise in democratizing optical metrology but also significantly widens its accessibility across various industries with stringent precision demands.
At the heart of this innovation lies the lithium niobate crystal, renowned for its nonlinear optical properties and durability, now harnessed in a chip-scale format through cutting-edge fabrication techniques. Unlike silicon, lithium niobate exhibits a pronounced Pockels effect, enabling rapid modulation of the optical phase and amplitude when subjected to electrical signals. This capability allows the laser’s emission frequency to be tuned continuously and rapidly, a feature crucial for sophisticated measurement techniques such as frequency-modulated continuous-wave (FMCW) LiDAR and high-fidelity frequency locking. By replacing a cluster of discrete components with a single chip, the technology significantly enhances the robustness, scalability, and energy efficiency of laser-based instruments.
The potential applications of this laser technology span multiple sectors with transformative impact. Foremost among these is autonomous driving, where LiDAR systems are essential for sensing and mapping the environment. Current LiDAR arrays require complex modulation mechanisms to differentiate distances and velocities of objects, but the ultrafast tuning capability of this lithium niobate laser offers a more refined version known as FMCW LiDAR. This method requires lasers capable of broad and rapid frequency sweeps, precisely what this new device delivers. In practical demonstrations, the laser successfully powered a LiDAR system mounted on a spinning platform to detect and resolve simple three-dimensional objects, signaling a scalable leap toward real-world vehicular applications capable of navigating busy roads with heightened safety.
Beyond transportation, the chip-scale laser’s sensitivity and speed herald opportunities in fundamental physics, particularly in gravitational wave detection. These experiments demand lasers with extraordinarily stable and narrow linewidths, capable of maintaining coherence over prolonged durations. The researchers showcased the device’s aptitude in implementing Pound-Drever-Hall (PDH) frequency locking, a canonical technique to reduce laser noise and stabilize frequency. Conventionally, PDH locks require numerous ancillary components like acoustic and phase modulators, each occupying significant space and complicating the experimental apparatus. The integration of all such functions within a single chip not only slashes the instrument footprint dramatically but also democratizes access to precision timing applications for optical clocks and other quantum metrology devices.
This compact laser holds promise for transformative changes in quantum optics and photonics research, where frequency agility and stability are prized. The ultrafast tuning capability at nearly 10^19 times per second opens novel pathways for experiments exploiting rapid laser wavelength cycling to probe atomic and molecular dynamics on ultrashort timescales. Lithium niobate photonic circuits are also compatible with other emerging quantum technologies, including on-chip entangled photon sources and quantum frequency converters, positioning this laser as a keystone component for integrated quantum photonics platforms.
From an engineering standpoint, the development showcases the remarkable progress in photonic integrated circuit (PIC) technology. Creating a miniature, yet broadly tunable and swiftly modulated laser source on a chip required overcoming formidable fabrication challenges. The research team employed advanced nanofabrication methods to pattern and integrate the lithium niobate waveguides and electrodes with sub-micrometer precision, ensuring low optical loss, tight mode confinement, and high modulation efficiency. The electrical tuning is achieved through carefully designed electrode geometries that maximize the Pockels effect without compromising the laser’s coherence or output power, reflecting a sophisticated synergy between material science and device engineering.
The collaboration between disciplines—combining expertise in electrical and computer engineering with optics—enabled the researchers to conceptualize and realize a multifunctional light source that is not only compact but also programmable in ways that traditional lasers are not. This fusion of electrical control and optical precision heralds a new class of devices that can be electrically tuned with high fidelity, rapidity, and range, breaking the shackles of mechanical and temperature-based tuning methods prevalent in older laser systems.
The implications for defense and aerospace are equally compelling. With support from the Defense Advanced Research Projects Agency (DARPA) and the National Science Foundation (NSF), this technology aims to serve sectors requiring miniaturized, ruggedized instrumentation that still attains laboratory-grade precision. It could empower portable sensing devices for battlefield reconnaissance, satellite-based remote sensing, and next-generation communication systems that leverage tunable lasers for secure data transmission and environmental sensing.
While still at a prototype stage, this laser model’s readiness to be scaled for industrial integration signifies a leap forward toward widespread adoption. The team envisions future chips that integrate multiple tunable lasers along with detectors and modulators to form fully functional photonic circuits on a single substrate, reducing costs and enhancing performance. By obviating the need for multiple external optical elements, these integrated photonic platforms are poised to revolutionize applications ranging from environmental monitoring and biomedical diagnostics to telecommunications and fundamental scientific instrumentation.
In summary, the chip-scale lithium niobate laser presents a major advance in optical metrology and photonics, combining the speed, precision, and versatility necessary for next-generation sensing technologies. Its ability to electrically tune across a broad spectral range at ultra-high speeds fosters new horizons in LiDAR, quantum optics, gravitational wave detection, and beyond, offering a pathway to compact, scalable, and cost-effective optical systems. As demand for intelligent sensing and rapid measurement grows across a spectrum of fields, this innovation stands out as a harbinger of the future of light-based technologies.
Subject of Research: Chip-scale ultrafast tunable laser for optical metrology
Article Title: Pockels laser directly driving ultrafast optical metrology
News Publication Date: 30-May-2025
Web References:
https://doi.org/10.1038/s41377-025-01872-4
Image Credits: University of Rochester photo / J. Adam Fenster
