A comprehensive investigation has unveiled significant insights into the magnetic field emissions from vehicle-mounted wireless power transfer (WPT) systems, addressing a crucial aspect of user safety in the realm of electric vehicle (EV) charging. The rising adoption of wireless charging technology, particularly for fleet vehicles and accessibility initiatives, underscores the pressing need to understand and mitigate electromagnetic field exposure. This study serves as an essential roadmap for manufacturers and regulators navigating the complex terrain of electromagnetic safety standards, particularly as they pertain to the burgeoning electric vehicle market.

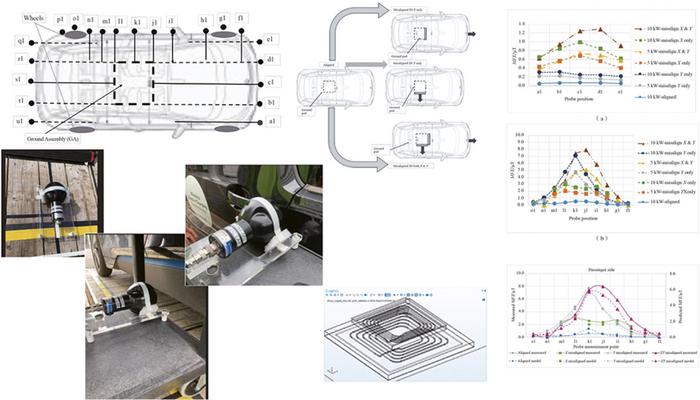

Researchers undertook extensive measurements around a vehicle outfitted with a proprietary WPT system, assessing how various factors influenced magnetic field emissions during charging operations. Central to this investigation was an exploration of the interaction between vehicle positioning and the charging pad, thus determining the resultant field strength experienced by users. Notably, the study sought to quantify the alignment effects that arise from mispositioned vehicles relative to charging equipment, establishing a direct connection between vehicle placement and electromagnetic emissions.
In addition to alignment, the researchers explored the relationship between power transfer levels and magnetic field intensity, a factor that has significant implications for user safety during charging operations. By examining multiple operational scenarios, the study illustrated how varying power levels can lead to differential field emissions. This finding is particularly critical since increased power transfer is often a goal for rapid charging systems, making it imperative that designers account for the potential rise in electromagnetic emissions.
Measurement positioning emerged as another key focus area, with attention paid to how probe height and distance from various components influenced the readings of magnetic field emissions. Such meticulous experimental design is foundational to ensuring that findings accurately reflect real-world conditions, which can vary dramatically based on user interactions with charging infrastructure. By employing a comprehensive approach that included varying measurement locations, the study provided a rich dataset that could guide future safety regulations.
The research also paid special heed to the contributions of specific vehicle components, particularly high-frequency cables, to overall magnetic field emissions. This facet of the investigation revealed critical insights into how the design of vehicle systems can inadvertently lead to elevated emissions. By pinpointing these sources of electromagnetic exposure, engineers can devise targeted strategies to mitigate their impact, thereby enhancing user safety.
As part of the study’s rigor, the authors evaluated their findings against multiple international safety guidelines, including the ICNIRP 1998 and 2010 guidelines and ISO 14117. The results were promising, demonstrating that magnetic field emissions remained well within the prescribed limits during standard operation at a power transfer level of 10 kW, provided that vehicles were properly aligned with charging pads.
In scenarios of misalignment, findings indicated that emissions could marginally exceed the limits established by the stringent ICNIRP 1998 standards in localized areas, yet the values remained comfortably within the thresholds set by other guidelines. This dichotomy highlights the importance of precise vehicle positioning during charging and suggests that even minor adjustments could significantly enhance safety.
The insights gleaned from this research proffer critical considerations for designers of wireless charging systems. A pronounced finding was the identification of field distribution patterns, revealing that the highest levels of magnetic emissions were located close to the ground, directly beneath the gap between the vehicle and the ground pads. This insight has profound implications for users, particularly for those with limited mobility, who may spend extended periods in proximity to charging infrastructure.
Another notable revelation involved misalignment effects; the study found that as vehicle alignment deviated from optimal conditions, emissions increased, although the system maintained a relatively consistent DC-DC efficiency. This means that while safety may be compromised in certain misalignment scenarios, the functionality of the charging system remains largely intact.
The researchers also examined the relationship between power scaling and magnetic emissions. Notably, the results indicated that increases in power transfer levels prompted a rise in emissions, though the rate of increase in field strength was considerably less intense than the corresponding rise in primary coil current. This relationship hints at the potential for optimizing power transfer systems to find a balance between efficiency and safety.
The importance of cable shielding surfaced as a critical variable. Unshielded high-frequency cables within the vehicle were identified as significant contributors to overall field emissions, highlighting an area for improvement in future vehicle designs. Ensuring that vehicle systems incorporate adequate shielding could be crucial in curbing excessive electromagnetic exposure, fostering an environment where wireless charging can operate safely and effectively.
Moreover, the research validated an innovative approach that combines physical measurements with finite element method (FEM) simulations. The authors adeptly utilized actual coil currents from the vehicle-installed WPT system to create simulations that closely predicted magnetic field trends. They emphasized that achieving accurate modeling demands consideration of the vehicle’s installation features, indicating a pathway for improving simulation fidelity in future studies.
The study advocates for the systematic incorporation of physical measurements around the vehicle perimeter to capture a holistic view of the electromagnetic field profile, as localized variations can dramatically skew findings. By highlighting the potential for significant fluctuations in field strength due to specific components, the research calls for a comprehensive approach to guidelines that governs magnetic field emissions from wireless charging systems.
Ultimately, this groundbreaking research not only serves as a vital resource for WPT system designers and installers but also for regulatory bodies overseeing the safe deployment of this technology. The insights derived here underscore that with thoughtful design and adherence to established safety frameworks, wireless charging systems can be safely integrated into the electric vehicle landscape, delivering their promised convenience without jeopardizing user safety.
As the shift towards wireless charging technology gains momentum, this research provides an optimistic outlook on how safety considerations can evolve alongside technological advancements, ensuring that the conveniences of wireless charging do not come at the expense of human exposure to electromagnetic fields.
Subject of Research:
Article Title: A study of the magnetic field emissions from a vehicle-mounted wireless power transfer system for safe operation when charging EV batteries
